Total Protein Normalization

Introducing the Western Blot Learning Center

Perfect your western blotting. Learn from the experts.

Western Blot Normalization Methods

A quantitative western blot accurately measures changes in protein expression by making relative comparisons between different treatments.

A properly designed quantitative western blotting experiment ensures that:

  • The amount of protein loaded is proportional to the signal intensity
  • All quantified targets' signal intensities fall within the linear range of the imaging system
  • Common blot-to-blot variations are accurately assessed by an internal loading control

Western blot normalization allows you to faithfully compare changes in protein expression by establishing the baseline needed to correct against common errors such as inconsistent sample preparation, pipetting error, and uneven protein transfer. Proper western blot normalization is required to show that the changes in band intensities correlate to the biological changes in your samples.

Conventional loading controls rely on consistent levels of a reference protein in each sample. Typically, a "housekeeping protein" (HKP) such as β-actin, β-tubulin, or GAPDH is used as a loading control, with the assumption that the expression levels of these proteins remains constant.

The Problem with Housekeeping Proteins

Reliable assessment of the changes in target protein expression levels requires the measurement of both the target protein and the loading control protein in their linear dynamic ranges for immunodetection. Unfortunately, housekeeping proteins are usually highly expressed, whereas target proteins are often expressed only in low abundance. Thus, to detect the target protein of interest, large amounts of cell lysate may need to be loaded, resulting in overloading of HKPs, yielding oversaturated reference bands, out of their linear range. Furthermore, HKP expression levels may not be constant but instead vary with different experimental treatments and other factors.

Variation in Housekeeping Protein (HKP) Expression Levels

The expression level of housekeeping proteins can change due to:

  • Experimental conditions
  • Developmental changes
  • Post-transcriptional regulation
  • Differences in cell
  • Tissue age & type

Differences in five candidate housekeeping proteins and total protein staining between tumor and non-cancerous tissues in the validation sample set. Immunodetection measurements of housekeeping protein levels show poor linearity and do not accurately indicate cell lysate loading levels. Total protein normalization of HKPs yields consistent band intensities. Hu X et al. (2016). Common housekeeping proteins are upregulated in colorectal adenocarcinoma and hepatocellular carcinoma, making the total protein a better "housekeeper". Oncotarget 7, 66, 679–66, 688.

Total Protein Normalization: The Better Alternative

The use of total protein measurement for western blot loading controls (total protein normalization; TPN) is a method devised to resolve the inherent difficulties with linearity in the immunodetection of both target and control proteins. Total protein levels can be determined by staining the membrane with total protein stains, e.g., Coomassie, SYPRO Ruby, Flamingo, amido black, or Ponceau S.

Because total protein stains are less sensitive than antibody-based immunodetection, they are far less likely to result in an oversaturated signal. As a result, they exhibit good linearity in the common loading range of 10–50 μg of cell lysate. Therefore, both low-abundance target protein levels, measured using sensitive immunodetection techniques, and high-abundance housekeeping protein levels, measured using less sensitive total protein staining techniques, can each be measured in their respective linear dynamic ranges.

Unfortunately, the use of total protein stains can interfere with subsequent blot development and visualization steps, typically requiring tedious staining and destaining procedures, a major reason for the lack of widespread adoption of total protein normalization using these stains. The invention of stain-free imaging technology has made total protein normalization a much better alternative for quantitative western blotting.

Advantages of Total Protein Normalization

Stain-free imaging allows for total protein normalization.

Lane profiling of total protein signal helps remove background and refine band detection.

Total protein normalization takes into account:

  • The intensity of all proteins in the lane
  • Sample loading variations
  • Variations during electrophoresis
  • Variations during transfer

Further Reading: Total Protein Normalization

Stain-Free Imaging

Stain-free imaging technology utilizes a proprietary trihalo compound to enhance natural protein fluorescence by covalently binding to tryptophan residues with a brief UV activation. Images of the gel or membrane after transfer can easily be captured multiple times without staining and destaining steps. This allows visualization, verification, and validation at all steps of electrophoresis and blotting, potentially saving time wasted on western blots with problems that would not otherwise have been detected until the later stages of blot processing and development.

Verification of Western Blotting Protein Transfer Using Stain-Free Imaging

  • Gel before transfer

  • Membrane after transfer

  • Gel after transfer

Assessment of protein transfer using a stain-free enabled imaging system. Images of the gel before and after transfer and of the membrane after transfer were taken using the Criterion Stain-Free imager. Serial 1:2 dilutions of hemoglobin (starting quantity, 80 ng), with 1.8 μg of BSA/lane as a carrier (top band), were electrophoretically separated on a 4–20% 26-well Criterion Stain-Free gel.

Using stain-free total protein measurement as the loading control, researchers can ensure that both the target protein and loading control are measured in the linear dynamic range in a typical western blot experiment. Furthermore, stain-free imaging allows for the complete elimination of the inherently problematic use of housekeeping proteins as loading controls on western blots. Stain-free total protein measurement serves as a more reliable loading control than housekeeping proteins, particularly in the loading range commonly used for cell lysates, permitting the user to obtain truly quantitative western blot data by normalizing bands to total protein in each lane.

Learn More About Stain-Free Technology »

A Better Way to Normalize Quantitative Western Blots

Total protein normalization using stain-free imaging technology allows normalization across a wider dynamic range.

Linearity comparison of stain-free total protein measurement and immunodetection of three housekeeping proteins in 10–50 μg of HeLa cell lysate. On the left are representative images of (a), stain-free blot and the chemi blots for (b), β-actin; (c), β-tubulin and (d), GAPDH. Lane labels correspond to total protein load (μg). Although the actin and tubulin signals appear linear, the densitometric ratio was far below the predicted “quantitative response” of actual loading whereas the stain-free signal correlated to the expected result (e). Taylor SC Posch A (2014). The design of a quantitative western blot experiment. Biomed Res Int. 36, 1590

Further Reading: Stain-Free Imaging for Western Blotting

Trends in Protein Separation and Analysis: The Advance of Stain-Free Technology

This article focuses on the theory and concepts surrounding stain-free technology as well as other traditional methods of protein staining.

New Publication Guidelines

Several major scientific journal publishers have recently revised their editorial guidelines for data publication, with an emphasis on reproducibility and quantitation criteria. The Journal of Biological Chemistry guidelines for collecting and presenting data specifically address quantitative western blot publication, providing guidance around normalization methods and supporting data, citing concerns with the use of housekeeping proteins, imaging technology, and antibody specificity.

Bio-Rad's Stain-Free Western Workflow meets the new publication guidelines – does yours?

Meeting the New Publication Requirements for Quantitative Western Blotting

JBC Guidelines: Quantitative Blots How to Meet Requirements Bio-Rad Western Workflow Solutions
"Housekeeping proteins should not be used for normalization without evidence that experimental manipulations do not affect their expression" Use Total Protein Normalization (TPN) instead of housekeeping proteins The Stain-Free Western Workflow suite simplifies stain-free TPN. This technology is proven with over 100 publications, allows for improved accuracy and will make your data more reliable
"Methods including detection of enhanced chemiluminescence using X-ray film have a very limited dynamic range" Use an imaging system with at least 4 logs of dynamic range ChemiDoc Systems are stain-free imagers with the sensitivity of film
Image Lab Software enables simple image generation and quantitation
"A description of the data supporting the specificity of all antibodies is required" Use fully validated antibodies PrecisionAb Antibodies offer documented specificity and validation protocols

Further Reading: Publication Guidelines

  • Nature: Information for Authors & Referees > Policies > Image Integrity and Standards
  • Fosang AJ, Colbran RJ (2015). Transparency Is the Key to Quality. J Biol Chem, 290(50): 29, 692–29, 694
  • McNutt M (2014). Journals Unite for Reproducibility. Science 346(6210): 679
  • Yadav G, Oh K (2018). Defining the New Normal in Quantitative Western Blot Data. Bioradiations.com

Key Factors for Publishing High-Confidence Western Blot Data

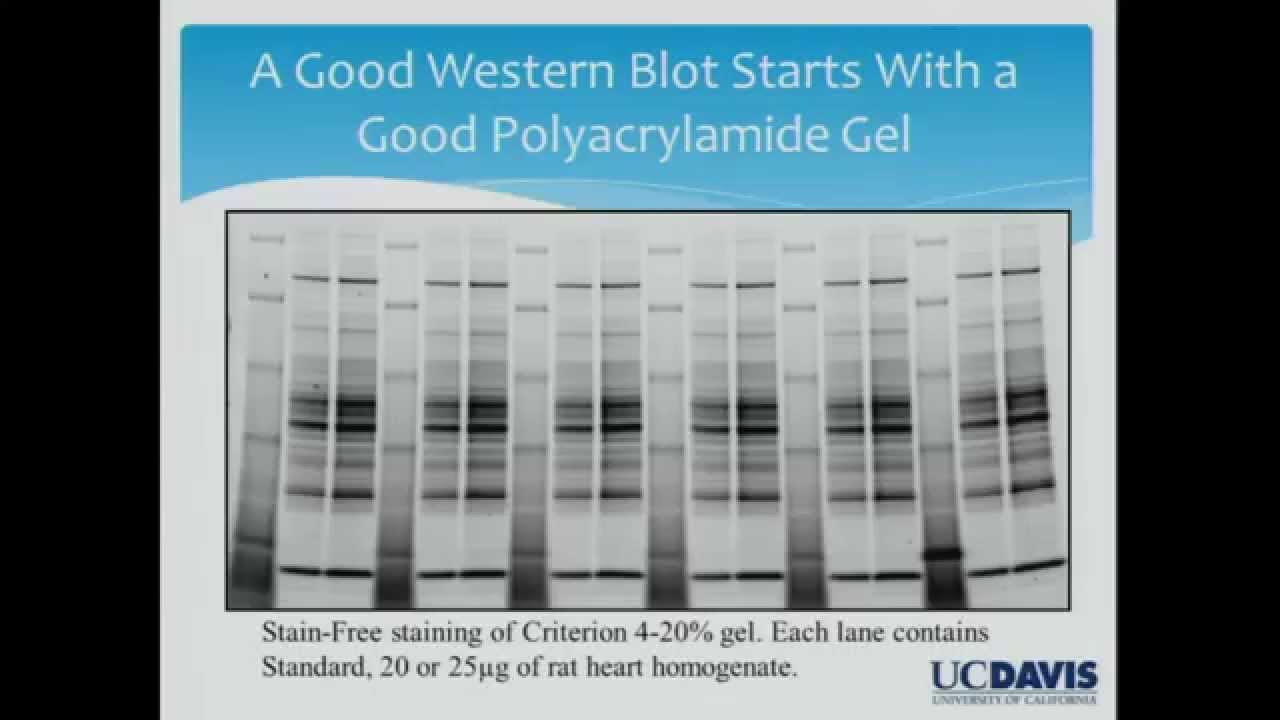

Prof. Aldrin V. Gomes (University of California, Davis) relies heavily on biophysical proteomic techniques in his studies of signal transduction, including western blotting. As an editor of several journals, he has routinely observed the submission of low-quality western blot data, leading him and other scientists to question the accuracy of protein quantification by western blotting in prior publications.

Prof. Gomes has deeply examined key success factors in western blotting, including antibody selection and reducing errors and misinterpretations by implementing a standardized procedure and proper controls. Here he presents key factors for high-confidence western blot data:

  • Antibody specificity and blocking reagent quality
  • Properly selected and executed controls
  • Total protein loading control vs. housekeeping protein loading control


Prof. Gomes also presents tips to reduce the overall bench time required for first-rate western blots and how to minimize the pain of going through a long procedure only to obtain equivocal results. As the old saying goes, If you didn't have time to do it right the first time, when will you find time to do it again?

Stain-Free Western Blotting

Stain-free western blotting allows you to quickly check electrophoresis and blot transfer quality and obtain truly quantitative western blotting results, updating traditional blotting techniques with innovative tools.

Faster Results. Better Data.

Ordering Information  Request a Demo

ChemiDoc Imaging System

Imagine No Compromises

With the ChemiDoc MP Imaging System, the superior quantitation of digital imaging meets the sensitivity of film. This best-in-class system images and analyzes gels and western blots. It is designed for multiplex fluorescent western blotting, chemiluminescence detection, general gel documentation, and stain-free technology imaging needs.

Learn More »




Better Options. Better Results.

Stain-Free
Total Protein Normalization

Learn how to properly design a quantitative western blotting experiment and faithfully compare protein expression levels, without concern for changing or overexpressed HKP’s.
See Data »

Chemiluminescence
Replaces Film

Save money on consumables and reduce environmental waste without compromising on performance. Get the sensitivity of film and the convenience of digital documentation.
See Data »

Multiplex Fluorescence
3 Colors

Save sample, avoid the errors commonly associated with stripping, reprobing, and cutting blots and answer more complex biological questions by optimizing your experiments to fluorescence.
See Data »


Compare our Chemidoc Systems »

Resources

FEATURED WEBINARUnderstand the Factors That are Crucial to Successful Western Blotting

Successful Western Blotting

Join Bio-Rad western blotting expert Kenneth Oh and his guest speakers for a webinar series that explores the many factors that go into the design and execution of successful and repeatable western blots. Chemiluminescence or fluorescence, qualitative or quantitative blot, not only will we discuss the how-to's, we'll take a deeper dive and discuss the why's.

View Webinar

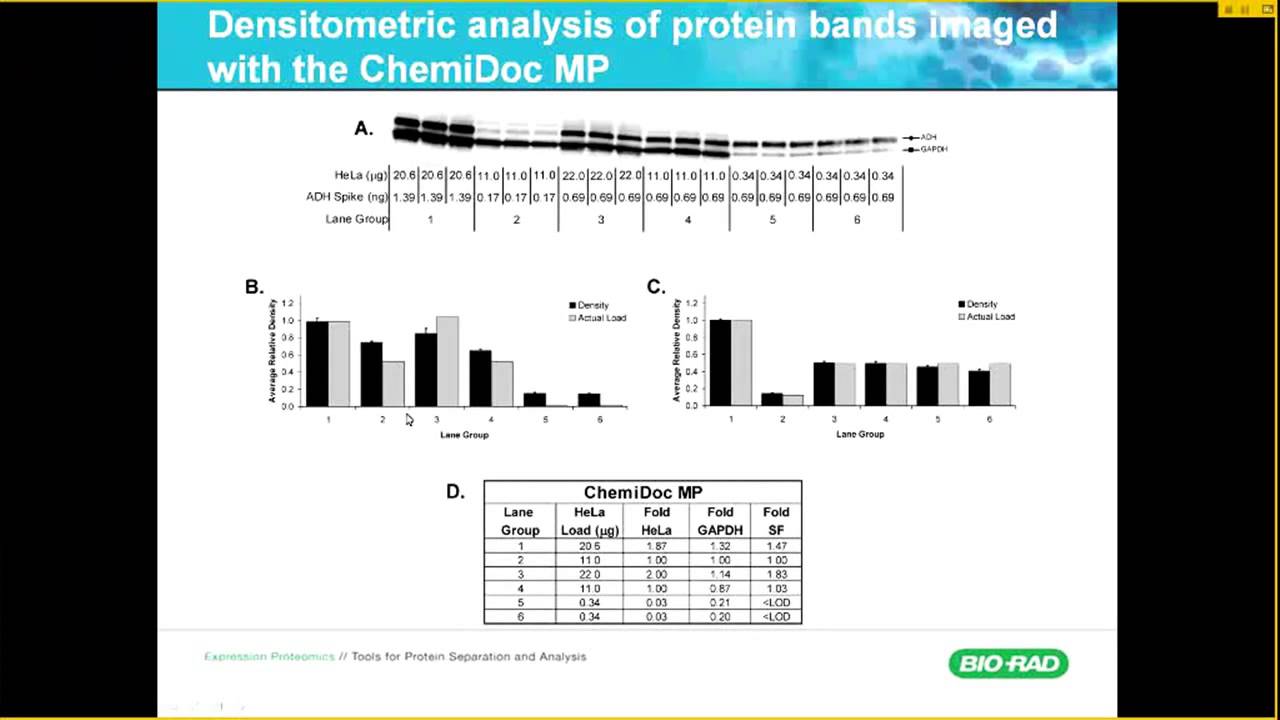

  • Reliable Quantification of Western Blot Data
