ZOE Fluorescent Cell Imager

Overview

The ZOE Cell Imager simplifies fluorescence microscopy with an intuitive touch-screen interface to control the brightfield, three fluorescence channels, and integrated digital camera.

Read full description Ordering Information

Description
Specifications
Ordering
Kits & Reagents
Downloads
Documents

Description

Contact an Expert

The ZOE Fluorescent Cell Imager eliminates the complexities of cell imaging associated with traditional microscopes. This fluorescence imaging system combines the ease of use of a personal tablet with the power of an inverted microscope.

An Android-based platform, the ZOE Cell Imager uses an intuitive touch-screen interface to control the brightfield, three fluorescence channels, and the integrated digital camera.

The ZOE Fluorescent Cell Imager is a complete digital imaging system, allowing users to view samples, capture and store images, and create multicolor overlays. Thanks to the built-in light shield, the ZOE Cell Imager does not require a darkroom for fluorescence imaging.

Features and Benefits of the ZOE Fluorescent Cell Imager

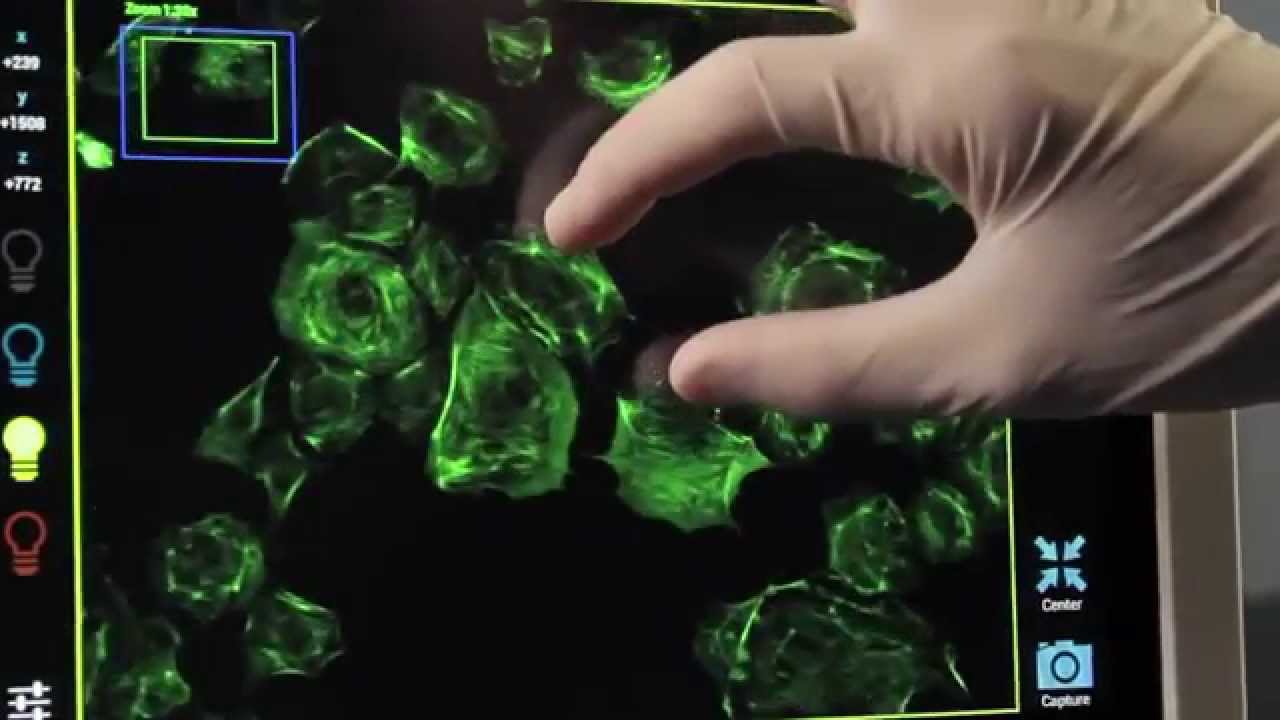

Simplified cell imaging — the intuitive touch-screen interface allows users to view cells, capture images, and create multichannel merges with minimal training
Flexible operation — brightfield and three fluorescence channels enable use for routine cell culture applications and more sophisticated imaging applications
Fluorescence imaging at your bench — light shield permits fluorescence imaging in ambient light
Robust construction — fully integrated system with long-life LEDs, ready for intensive daily use
LED light sources — thousands of hours of illumination that are instantly ready after power-on
Large viewing area — the motorized stage and wide field of view allow you to see more of your sample, faster
Small footprint — compact size accommodates crowded lab benches

Applications of the ZOE Fluorescent Cell Imager

Use the ZOE Cell Imager to check/screen samples prior to high-content analysis (HCA), high-throughput screening (HCS), confocal imaging, or fluorescence-activated cell sorting (FACS). With a brightfield and three fluorescent channels, the ZOE Cell Imager has all the features needed for daily cell culture work as well as fluorescent applications:

Visual estimation of cell confluency
Observation of general cell health and morphology
Cell growth and proliferation monitoring
Capturing cell images (with or without fluorescent labels)
Visualization of expressed fluorescent proteins
Immunofluorescent protein localization
Estimation of transfection efficiency

Illumination Light Sources

Blue channel uses a UV LED
Green channel uses a blue LED
Red channel uses a green LED
Brightfield channel uses a ring of multiple green LEDs for reduced chromatic aberration

Fluorophores Compatible with the ZOE Fluorescent Cell Imaging System

This is not a comprehensive list; other dyes and fluorescent proteins with compatible excitation and emission spectra can also be used.

Blue Channel Excitation: 355/40 nm Emission: 433/36 nm	Green Channel Excitation: 480/17 nm Emission: 517/23 nm	Red Channel Excitation: 556/20 nm Emission: 615/61 nm
PureBlu DAPI Nuclear Staining Dye	CytoTrack Green 511/525	ReadiLink 555/570 Antibody Labeling Kit
PureBlu Hoechst 33342 Nuclear Staining Dye	ReadiLink 492/516 Antibody Labeling Kit	ReadiLink 594/610 Antibody Labeling Kit
ReadiLink 350/440 Antibody Labeling Kit	VivaFix 498/521 Cell Viability Assay*	VivaFix 547/573 Cell Viability Assay
VivaFix 353/442 Cell Viability Assay	CFDA-SE	VivaFix 583/603 Cell Viability Assay
Alexa Fluor 350	Acridine Orange	Alexa Fluor 546
Alexa Fluor 405	Alexa Fluor 488 dye*	Alexa Fluor 568
Cascade Blue	BODIPY Fl*	Alexa Fluor 594
CellTracker Blue	Calcein AM	Alexa Fluor 610
DAPI*	DiO	Cy3*
Hoechst*	EGFP*	Dil Stain
LysoTracker Blue	ER-Tracker Green	DsRed*
Marina Blue	FITC*	ER-Tracker Red
NucBlue Fixed	MitoTracker Green FM	mCherry*
NucBlue Live	SYTO 9, SYTO 13, SYTO 16	mStrawberry
—	SYTOX Green	MitoTracker Red*
—	Tubulin Green	mKate*
—	YFP*	RFP*
—	—	SYTOX Orange
—	—	SYTO 84, SYTO 85
—	—	Texas Red*

* R&D Tested

Related Technologies

Related Products

Specifications

Imaging channels

Brightfield channel and 3 fluorescence channels (blue, green, and red)

Light source

Blue channel: UV LED
Green channel: blue LED
Red channel: green LED
Brightfield channel: multiple green LEDs (reduces chromatic aberration)

User interface

10.1 in. color (26 cm) touch-screen LCD monitor, with anti-glare and anti-fingerprint treatment, 1,280 x 768 pixel image resolution, 80–180° angle tilt range

Focusing mechanism

Coarse and fine, manual adjustment

Camera

Monochrome camera, 12 bit CMOS, 5 megapixels

Data format

JPEG, TIFF, or RAW image files

Image merge

Images from up to 4 channels can be overlaid

Data storage

16 GB internal memory (~2,500 JPEG files,1,500 TIFF files, 400–800 RAW files)

Data export

Yes, 2 USB ports

Display output

Yes, 1 HDMI port

Objective

20x

Numerical aperture

0.40

Display magnification

Standard: 175x; zoom: 700x

Maximum imaging area

0.70 mm² field of view

Motorized stage

6 mm travel in X, Y direction, touch-screen control of travel speed and direction

Compatible with

Flasks: T25, T75, or T225
Multiwell plates: 6-, 12-, 24-, 48-, 96-, or 384-well microplates
Dishes: 35 mm, 60 mm, or 100 mm
Slides: chamber slides or standard glass microscopy slides

Software

Stand-alone Android operating system; PC is not required for operation

Instrument size (L x W x H)

33 x 32 x 30 cm (13 x 12.6 x 11.6 in.)

Instrument weight

9 kg (19.7 lb)
