Helios® Gene Gun System

Print
Helios Gene Gun Systems

Overview

Specifications
Helios Gene Gun System   Tubing Prep Station
Functional   Electrical
Maximum current 10 mA peak   Maximum current 62 mA/125 mA peak
Voltage input 9 V alkaline battery, replaceable   Voltage input 220/240 V or 100/120 V
Battery life 1,000 discharges in continuous use   Functional
Gas pressure 600 psi maximum helium   Input frequency 50/60 Hz
Safety relief pressure 700 ± 35 psi at regulator assembly   Safety relief pressure 30 ± 1.5 psi at regulator assembly
Regulator adjustment 800 psi limit maximum   Speed 30 rpm nominal
Discharges 12 per cylinder, mechanical indexing   Tubing fill Manual
Environmental   Physical
Operating temperature 10–32°C (50–90°F); 30–80% humidity   Construction Aluminium and acrylic
Storage temperature 0–60°C (32–110°F); 10–90% humidity   Dimensions
(W x D x H)
85 x 10 cm (33.5 x 4"; approximate)
Physical   Weight 5.08 kg (11.2 lb)
Dimensions
(W x D x H)
20 x 25 cm (8 x 10"; approximate)
Weight 1.42 kg (3.13 lb)
Sample Delivery

Schematic of sample delivery using the Helios gene gun.


Biolistic Applications
Transformation Factors Helios Gene Gun System PDS-1000/He System
Experimental conditions In situ, in vitro
In vivo, ex vivo
In vitro, ex vivo
in vivo (plants)
Target area Small (2 cm2) Large (40 cm2)
Pressure range 100–600 psi 450–2,200 psi
Target type Animals: Any tissue exposed to barrel (skin, organs); cell, explant, and organ culture
Plants: Field and greenhouse use, plant cell culture, explants
Yeast, bacteria, other microbes
Animals: Cell and organ culture
Plants: Small intact plants, plant cell culture, explants
Yeast, bacteria, other microbes
Organelles (chloroplasts, mitochondria, etc.)
Transfection Protocol Library


The Transfection Protocol Online Library contains protocols obtained from the literature, developed by Bio-Rad scientists, or submitted by scientists like you. browse protocols to view our library and find your starting point.

Bio-Rad Laboratories has helped scientists deliver molecules into cells for over 35 years. Instruments, including the Gene Pulser® series of electroporators, the MicroPulser electroporator, and the Helios® gene gun and PDS-1000/He biolistic systems, have been used successfully to transfect prokaryotic and eukaryotic cells, including plant and animal cells. These transfection instruments are cited extensively in the literature. Our chemically mediated methods include lipid-based transfection reagents — TransFectin lipid reagent for delivery of plasmid DNA and siLentFect lipid reagent for siRNA delivery.

The Helios gene gun is a convenient handheld device that provides direct, rapid, and versatile gene delivery into a range of targets in vivo.
Read full description

Ordering Information


  • Description
  • Ordering
  • Accessories
  • Documents

Description

The Helios gene gun is a convenient handheld device that provides rapid and direct transfection into a range of targets in vivo. The unit uses an adjustable low-pressure helium pulse to sweep DNA-, RNA-, or biomaterial-coated gold microcarriers from the inner wall of a small plastic cartridge directly into target cells.

Key Features

  • Provides easy-to-use, rapid, versatile gene delivery independent of target cell type
  • Facilitates both transient and stable expression
  • Requires only small amounts of DNA and cells; no carrier DNA needed
  • Enables codelivery of more than one plasmid
  • Allows transfer of large DNA fragments
  • Targets intracellular gene delivery to many cells
  • Works for both in vitro and in vivo transformation
  • Delivers no extraneous genes or proteins

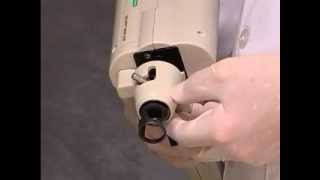

Helios® Gene Gun Training Video. This video provides an overview of the Helios Gene Gun Biolistic Particle Transfection System, including instrument setup, microcarrier and cartridge preparation, and instrument operation.


Ordering

x

Account price failed to display. Please try reloading the page.Reload Page

If you are placing an order, you may proceed with your order; the account price will be applied if it is lower than the
list price. If the problem persists, please call customer service at or send an
email to

Helios Gene Gun Kit

1652411
100/120 V, handheld biolistic system, includes gene gun, 5 O-rings, 5 barrel liners, 5 white cartridge holders, cartridge extractor tool, 9 V battery.

List Price:

Inquire
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:

Helios Gene Gun System

1652431
100/120 V, handheld biolistic system, includes helium hose assembly with regulator, tubing prep station (#165-2418), syringe kit, Tefzel tubing, tubing cutter, optimization kit (#165-2424)

List Price:

Inquire
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:

(Discontinued) Helios Gene Gun Low-Pressure System

1652451
100/120 V, handheld biolistic system, includes helium hose assembly with low-pressure regulator, tubing prep station (#165-2418), syringe kit, tubing cutter, optimization kit (#165-2424)

This product is no longer available. Please contact technical support for more information on replacement product.
Tubing Prep Station

1652420
220/240 V, Helios gene gun sample preparation station, for the preparation of microparticle cartridges

List Price:

$3,523.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Voltage Converter

1652259
Pkg of 1, voltage converter, for use with PDS-1000/He system on 220–240 V lines

List Price:

$2,247.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart


Accessories

x

Account price failed to display. Please try reloading the page.Reload Page

If you are placing an order, you may proceed with your order; the account price will be applied if it is lower than the
list price. If the problem persists, please call customer service at or send an
email to

(Discontinued) GeneShot Control Cartridges

1652244
Pkg of 12, positive control bullets, 1.6 μm gold particles coated with LacZ and luc; for use with the Helios gene gun system (#165-2431, #165-2432)

This product is no longer available. Please contact technical support for more information on replacement product.

View similar items:

Helium Hose Assembly

1652412
Pkg of 1, Helios gene gun accessory, connects to helium source for safety and consistent helium delivery, with Swagelok quick-connect fittings

List Price:

$1,241.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Helium Regulator

1652413
Pkg of 1, pressure regulator for use with Helios gene gun, CGA 580 female fitting (U.S. standard) with pressure relief valve, max. pressure 2,600 psi

List Price:

$4,118.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Low-Pressure Helium Regulator for Helios Gene Gun

1652414
Pkg of 1, pressure regulator for use with Helios gene gun, CGA 580 female fitting (U.S. standard) with pressure relief valve, max. pressure 400 psi

List Price:

$4,117.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Tubing Prep Station

1652418
100/120 V, Helios gene gun sample preparation station, for the preparation of microparticle cartridges

List Price:

$3,762.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Syringe Kit

1652421
Kit for loading gold suspension into Tefzel tubing, includes syringe adaptor tubing, 5 x 10 ml syringes, syringe adaptor fitting, 5 Luer-Lok fittings

List Price:

$112.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Tubing Cutter

1652422
Pkg of 1, instrument for cutting Tefzel tubing, for use with the Helios gene gun, includes 10 razor blades

List Price:

$280.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Helios Gene Gun Optimization Kit

1652424
Optimization kit for the Helios gene gun, includes 0.6 μm, 1.0 μm and 1.6 μm gold microcarriers, PVP, desiccant, 5 cartridge storage vials, 50 feet of Tefzel tubing, for 1,000 samples

List Price:

$2,992.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Cartridge Kit

1652440
Kit for preparing Helios gene gun cartridges, includes 0.5 g PVP, 5 desiccant pellets, 5 cartridge collection/storage vials, 15 m of Tefzel tubing

List Price:

$280.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

0.6 µm Gold Microcarriers

1652262
0.25 g, 0.6 μm diameter, gold microcarriers for use with the PDS-1000/He and Helios gene gun systems

List Price:

$839.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

1.0 µm Gold Microcarriers

1652263
0.25 g, 1.0 μm diameter, gold microcarriers for use with the PDS-1000/He and Helios gene gun systems

List Price:

$897.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

1.6 µm Gold Microcarriers

1652264
0.25 g, 1.6 μm diameter, gold microcarriers for use with the PDS-1000/He and Helios gene gun systems

List Price:

$897.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Nitrogen Regulator for US Standard Connections

1652425
Pkg of 1, nitrogen regulator, for drying Tefzel tubing during Helios gene gun sample preparation

List Price:

$3,107.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

O-Rings

1652416
Pkg of 5, O-rings for use with the Helios gene gun system (#165-2431, #165-2432)

List Price:

$17.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Barrel Liner

1652417
Pkg of 5, sample preparation accessory for Helios gene gun

List Price:

$197.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Cartridge Holder

1652426
Pkg of 5, accessory for loading microparticle-coated cartridges into the Helios gene gun, white

List Price:

$134.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Cartridge Extractor Tool

1652435
Pkg of 1, tool for removing discharged cartridges, for use with the Helios gene gun (#165-2431, #165-2432)

List Price:

$31.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Battery

1652436
Pkg of 1, 9 V alkaline battery, for use with the Helios gene gun, provides 1,000 discharges in continuous use

List Price:

$19.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Tefzel Tubing

1652441
15 m, tubing for coating with DNA- or RNA-gold microcarrier complexes, used with the Helios® gene gun, .125" (3.175 mm) OD, .093" (2.36 mm) ID

List Price:

$255.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart

Helios Diffusion Screens

1652475
Pkg of 5, screens for use with the Helios gene gun (#165-2431, #165-2432)

List Price:

$57.00
LoadingLoading...
EDU Price:

What is this?
Your Price:

LoadingLoading...
Your Price:


Communication error

Reload Page

Quantity:   Add to Cart


Documents

Number Description Options
5443 Biolistic Particle Delivery Systems Brochure, Rev A Click to download
5446 Helios Gene Gun System Flier, Rev A Click to download
10000118158 Instruction Manual, Helios Gene Gun System Click to download
4106137 Instruction Manual, GeneShot Control Cartridges Click to download
M1652475 Instruction Manual, Helios® Gene Gun Diffusion Screen, Rev A Click to download
2552 The Gene Gun: Current Applications in Cutaneous Gene Therapy, Rev A Click to download
2433 Transformation of Nematodes With the Helios Gene Gun Click to download
2453 Optimization of Gene Delivery Into Arabidopsis, Tobacco, and Birch Using the Helios Gene Gun System Click to download
2531 Inoculation of Viral RNA and cDNA to Potato and Tobacco Plants Using the Helios Gene Gun Click to download
2726 Delivery of pCMV-S DNA Using the Helios® Gene Gun System Is Superior to Intramuscular Injection in Balb/c Mice Click to download
1689 Comparison of Performance Characteristics of Different Biolistic® Devices Click to download
2768 Biolistic Gene Transfer to Generate Transgenic Schistosomes, Rev A Click to download
2410 Detection of Reporter Gene Activity in Cell Cultures and Murine Epidermis After Helios® Gene Gun-Mediated Particle Bombardment, Rev B Click to download

This product contains electrical or electronic material. Learn more about Bio-Rad's EU Recycle Program

Get Help
Sign Up for Bio-Rad Updates!
Enter your email address below to receive your choice of the latest news, promotions, and more.
