Overview

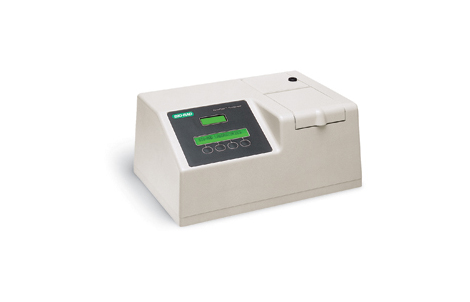

VersaFluor Fluorometer

BioRad offers a benchtop fluorometer that is compatible with a number of different filters, along with several fluorescent assay reagents for DNA quantitation.

Filter Selection Guide
Application Excitation Filter Catalog # Emission Filter Catalog #
DNA quantitation (Hoechst 33258) EX 360/40 (340–380 nm) 170-2420 EM 460/10 (455–465 nm) 170-2421
β-Galactosidase (MUG) EX 360/40 (340–380 nm) 170-2420 EM 460/10 (455–465 nm) 170-2421
β-Glucuronidase (MUGluc) EX 360/40 (340–380 nm) 170-2420 EM 460/10 (455–465 nm) 170-2421
DNA quantitation (PicoGreen) EX 480/20 (470–490 nm) 170-2427 EM 520/10 (515–525 nm) 170-2424
RNA quantitation (RiboGreen) EX 490/10 (485–495 nm) 170-2422 EM 520/10 (515–525 nm) 170-2424
Oligonucleotide/protein quantitation (OliGreen) EX 480/20 (470–490 nm) 170-2427 EM 520/10 (515–525 nm) 170-2424
Protein quantitation (NanoOrange) EX 480/20 (470–490 nm) 170-2427 EM 590/10 (585–595 nm) 170-2425
Fluorescein EX 490/10 (485–495 nm) 170-2422 EM 520/10 (515–525 nm) 170-2424
Ethidium bromide EX 510/10 (505–515 nm) 170-2423 EM 620/10 (615–625 nm) 170-2426
wtGFP (wild-type Green Fluorescent Protein) EX 390/22 (379–401 nm) 170-2443 EM 510/10 (505–515 nm) 170-2445
EGFP (red-shifted Green Fluorescent Protein) EX 490/10 (485–495 nm) 170-2422 EM 510/10 (505–515 nm) 170-2445
EBFP (blue-emitting Green Fluorescent Protein) EX 380/30 (365–395 nm) 170-2444 EM 440/10 (435–445 nm) 170-2446
GFPuv (UV-excited Green Fluorescent Protein) EX 390/22 (379–401 nm) 170-2443 EM 510/10 (505–515 nm) 170-2445

User-selectable filters support a multitude of applications with a broad range of excitation and emission wavelengths. Custom filter sets are also available from your local Bio-Rad sales representative. This table lists commonly used fluorescent assays and recommended excitation and emission filters.

The VersaFluor fluorometer provides a fast and simple way to quantitate DNA, RNA, and proteins; detect apoptosis; and perform reporter enzyme assays with the high level of sensitivity and selectivity that fluorescence detection offers. The flexible VersaFluor fluorometer features changeable filters for multiple excitation and emission wavelengths. Refer to the Filter Selection Guide to order the appropriate filter for your application.

Use the VersaFluor fluorometer and one of Bio-Rad's fluorescent assay kits to rapidly assay the reporter enzymes β-glucuronidase and β-galactosidase or quantitate DNA.

Key Features

  • Accurate DNA quantitation at concentrations as low as 10 ng/ml using Hoechst dye
  • Available excitation and emission filters for multiple applications
  • Compatible with optimized, ready-to-use fluorescent assay kits
  • Exportable data to the VersaFluor thermal printer or to a PC
  • Easy-to-operate, menu-driven software
  • Small footprint, low price, high performance

Light source 20 W quartz halogen lamp, 350–900 nm
Lamp life 2,000 hr
Sensing device Photodiode
Optical filter size Excitation: 1" diameter with holder
Emission: 1" diameter with holder
Cuvette sizes Standard: 12.5 x 12.5 mm (outside dimension)
Sensitivity 10 ng/ml DNA using Hoechst dye in a 2 ml assay volume
Sensitivity selection Three setting: Low, Med, and High, with approximate factor of 10 between each setting
Dynamic range 5 orders of magnitude using all 3 sensitivity selections
Regulatory EN61010–1, CE
Printer output RS–232 serial port
Printer VersaFluor thermal printer
AC power input 100–240 VAC, 50–60 Hz
Weight 4 kg
Dimensions 17 x 33 x 23 cm
Number Description Options
2431 Using the VersaFluor Fluorometer to Quantitate GUS Expression in Plant Tissues Bombarded With the Biolistic PDS-1000/He System Click to download
2434 Quantitative Analysis of GFP in Plant Extracts Using the VersaFluor Fluorometer System Click to download
2436 Quantitation of RNA for Hybridization Blots Using the VersaFluor Fluorometer Click to download
2387 Quantitation of DNA for Automated Sequencing Using the VersaFluor Fluorometer, Rev A Click to download
2368 Measuring Intracellular Enhanced Green Fluorescent Protein With the VersaFluor Fluorometer Click to download
M1702401 Instruction Manual, VersaFluor Fluorometer, Rev B Click to download [ Add to Cart ]
41000157 Instruction Manual, VersaFluor Fluorometer Quick Reference Guide (Laminate), Rev A Click to download
4000107 Instruction Manual, Fluoromark Microplate Fluorometer and Fluoromark Software, Rev A Click to download
2234 VersaFluor Fluorometer Brochure Click to download
