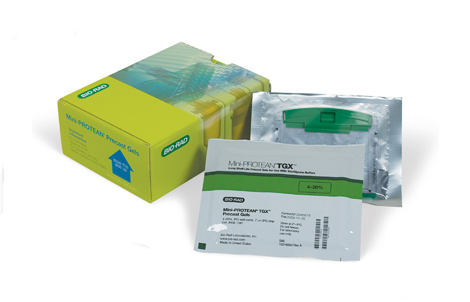

Mini-PROTEAN® TGX™ Precast Gels for 2-D Electrophoresis

print

Overview

Migration Chart
Migration Chart

Mini-PROTEAN® TGX™ Precast Gels

Mini-PROTEAN TGX Precase Gels

Ready Gel Precast Gels

Ready Gel Precast Gels
Performance Data
Performance Data
Mini-PROTEAN vs. Novex Gel Cassettes
Mini-PROTEAN® vs. Novex Gel Cassettes
Running Mini-PROTEAN® TGX™ Precast Gels
Setting Up and Running Mini-PROTEAN® TGX™ Precast Gels
Preparing, Opening the Mini-PROTEAN® Cassette
Preparing and Opening the Mini-PROTEAN® Cassette
Innovating Electrophoresis with Precast Gels
Innovating Electrophoresis with Precast Gels

The long shelf life Mini-PROTEAN® TGX™ precast gels are ideal for mini-format 2-D electrophoresis because they are:

  • robust in handling different sample types and sample solution conditions
  • versatile in molecular weight range, especially the Any kD™ gel with range from 10–250 kD
  • capable of separations of complex samples with several hundred identifiable protein spots

The Mini-PROTEAN TGX precast gels are an innovative PAGE system designed to provide Laemmli-like separation patterns using a standard Tris/glycine running buffer system. The Mini-PROTEAN gels are compatible with Mini-PROTEAN Tetra (1–4 gels) and Dodeca™ (1–12 gels) cells. These gels can also be used in the discontinued Mini-PROTEAN 3 cell.

Benefits of Mini-PROTEAN TGX precast gels include:

  • Direct drop-in for Laemmli systems
  • Inexpensive buffer system, low running costs
  • Fast run times
  • Accurate MW estimation
  • Bottom-open cassette design for easy gel handling and faster blotting setup
  • Easy-to-open cassette for faster downstream processing
Gel dimensions (W x L x thickness) 8.6 x 6.7 x 0.1 cm
Cassette dimensions (W x L x thickness) 10 x 8 x 0.46 cm
Cassette material Styrene copolymer
Comb material Polycarbonate
Gel storage conditions Store flat at 2–8°C; do not freeze
Shelf life at recommended temperature* 12 months
Recommended sample buffer (Laemmli, dilute 1:1 with sample) 62.5 mM Tris-HCl, pH 6.8, 2% SDS, 25% glycerol, 0.01% bromophenol blue
Recommended running buffer (Tris/glycine/SDS) 25 mM Tris, 192 mM glycine, 0.1% SDS, pH 8.3

* From date of manufacture


Any kD™ Mini-PROTEAN® TGX™ precast Gel #456-9031
Any kD™ Mini-PROTEAN® TGX™ Precast Gel

456-9031
Pkg of 10, Any kD precast polyacrylamide gel, IPG well, 7 cm IPG strip, for use with Mini-PROTEAN electrophoresis cells; includes 1 opening lever

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
promo
10% Mini-PROTEAN® TGX™ precast Gel #456-1031
10% Mini-PROTEAN® TGX™ Precast Gel

456-1031
Pkg of 10, 10% precast polyacrylamide gel, IPG well, 7 cm IPG strip, for use with Mini-PROTEAN electrophoresis cells; includes 1 opening lever

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
promo
12% Mini-PROTEAN® TGX™ precast Gel #456-1041
12% Mini-PROTEAN® TGX™ Precast Gel

456-1041
Pkg of 10, 12% precast polyacrylamide gel, IPG well, 7 cm IPG strip, for use with Mini-PROTEAN electrophoresis cells; includes 1 opening lever

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
promo
4—15% Mini-PROTEAN® TGX™ precast Gel #456-1081
4–15% Mini-PROTEAN® TGX™ Precast Gel

456-1081
Pkg of 10, 4–15% precast polyacrylamide gel, IPG well, 7 cm IPG strip, for use with Mini-PROTEAN electrophoresis cells; includes 1 opening lever

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
promo
4—20% Mini-PROTEAN® TGX™ precast Gel #456-1091
4–20% Mini-PROTEAN® TGX™ Precast Gel

456-1091
Pkg of 10, 4–20% precast polyacrylamide gel, IPG well, 7 cm IPG strip, for use with Mini-PROTEAN electrophoresis cells; includes 1 opening lever

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
promo
7.5% Mini-PROTEAN® TGX™ precast Gel #456-1021
7.5% Mini-PROTEAN® TGX™ Precast Gel

456-1021
Pkg of 10, 7.5% precast polyacrylamide gel, IPG well, 7 cm IPG strip, for use with Mini-PROTEAN electrophoresis cells; includes 1 opening lever

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
promo
Number Description Options
1658100 Mini-PROTEAN Precast Gels Instruction Manual and Application Guide, Rev F Click to download
5871 Mini-PROTEAN TGX Precast Gels Product Information Sheet, Rev F Click to download [ Add to Cart ]
5910 Mini-PROTEAN TGX Precast Gel: A Gel for SDS-PAGE with Improved Stability — Comparison with Standard Laemmli Gels, Rev B Click to download [ Add to Cart ]
5911 Mini-PROTEAN TGX Precast Gel: A Versatile and Robust Laemmli-Like Precast Gel for SDS-PAGE, Rev A. Click to download [ Add to Cart ]
5932 Ready Gel to Mini-PROTEAN TGX Precast Gels Catalog Number Conversion Chart, Rev E Click to download [ Add to Cart ]
5934 NuPAGE Bis-Tris Precast Gels (MOPS Buffer) to Mini-PROTEAN TGX Precast Gels Catalog Number Conversion Chart, Rev G Click to download [ Add to Cart ]
