BioLogic DuoFlow F10 Workstation

print

Overview

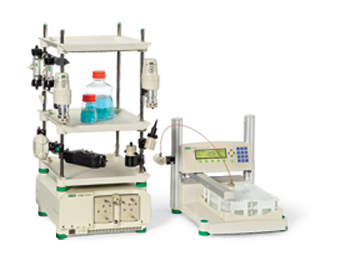

BioLogic DuoFlow 10 System
BioLogic DuoFlow 10 System

The BioLogic DuoFlow 10 system includes an F10 workstation for a flow rate of 0.01–10 ml/min* at 3,500 psi (233 bar, 23 MPa). A Model MX-1 mixer, 3-tray rack, AVR7-3 sample inject valve, fittings kit, UV detector with 5 mm flow cell and 254/280 nm filters, conductivity monitor, starter kit, UNO Q1 column, and instructions are also included.

* To double the flow rate to up to 20 ml/min, use the BioLogic Maximizer valve system. The optional F40 pump kit expands pumping capabilities to 40 ml/min.

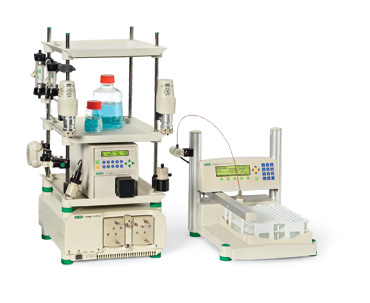

BioLogic QuadTec 10 System
BioLogic QuadTec 10 System
BioLogic Quadtec 10 System

The BioLogic DuoFlow QuadTec 10 system includes:

  • F10 workstation for a flow rate of 10 ml/min* at 3,500 psi (233 bar, 23 MPa)
  • BioLogic QuadTec UV/Vis detector for simultaneous monitoring of four wavelengths ranging from 190–740 nm (with deuterium lamp at 190–370 nm and optional halogen lamp at 370–740 nm)

A Model MX-1 mixer, 3-tray rack, AVR7-3 sample inject valve, fittings kit, instrument control module (ICM), system cables 25 and 26, conductivity monitor, starter kit, UNO Q1 column, and instructions are also included.

* Flow rates can be doubled with the addition of the BioLogic Maximizer valve system.

BioLogic Maximizer 20 System
BioLogic Maximizer 20 System
BioLogic Maximizer System

The BioLogic DuoFlow Maximizer 20 system includes:

  • F10 workstation
  • BioLogic Maximizer valve system for flow rates up to 20 ml/min
  • BioLogic DuoFlow pH monitor for real-time monitoring of pH conditions during a run
  • BioFrac fraction collector for the widest range of collection capabilities
A BioLogic Maximizer mixer, Model MX-1 mixer, 3-tray rack, AVR7-3 sample inject valve, fittings kit, UV detector with 5 mm flow cell and 254/280 nm filters, conductivity monitor, starter kit, UNO Q1 column, diverter valve, two F1 racks, and instructions are also included.

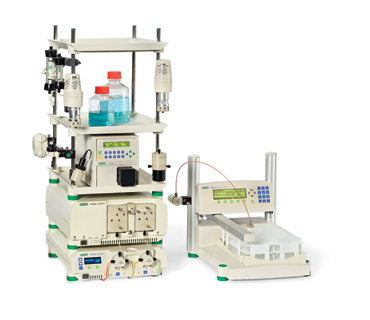

BioLogic Pathfinder 20 System
BioLogic Pathfinder 20 System
BioLogic Pathfinder System

The BioLogic DuoFlow Pathfinder 20 system includes:

  • F10 workstation
  • BioLogic Maximizer valve system for flow rates of up to 20 ml/min
  • BioLogic QuadTec UV/Vis detector for simultaneous monitoring of four wavelengths ranging from 190–740 nm (with deuterium lamp at 190–370 nm and optional halogen lamp at 370–740 nm)
  • BioLogic DuoFlow pH monitor for real-time monitoring of pH conditions during a run
  • BioFrac fraction collector for the widest range of collection capabilities
A BioLogic Maximizer mixer, Model MX-1 mixer, 3-tray rack, AVR7-3 sample inject valve, fittings kit, system cable 25, conductivity monitor, starter kit, UNO Q1 column, diverter valve, two F1 racks, and instructions are also included.



The BioLogic DuoFlow F10 workstation includes an F10 pump for a flow rate of 0.01–10 ml/min* at 3,500 psi (233 bar, 23 MPa).

The BioLogic DuoFlow F10 workstation is a component of the following systems:

  • BioLogic DuoFlow 10 system
  • BioLogic DuoFlow QuadTec 10 system
  • BioLogic DuoFlow Maximizer 20 system
  • BioLogic DuoFlow Pathfinder 20 system

* To double the flow rate to up to 20 ml/min, use the BioLogic Maximizer valve system. The optional F40 pump kit expands pumping capabilities to 40 ml/min.

Technical Specifications BioLogic DuoFlow Systems
Flow rate limit 10 ml/min 20 ml/min; optional Maximizer valve system
Pressure limit 3,500 psi (23 MPa) at 10 ml/min
UV detection Standard 254 and 280 nm filters; optional 214, 365, 405, 436, and 546 nm filters; standard 5 mm analytical flow cell; optional 2 mm preparative flow cell; optional BioLogic QuadTec UV/Vis detector, 4-wavelength simultaneous detection
Conductivity Standard
pH detection Optional
Other detectors Optional signal import module (SIM), adds pH, refractive index, and fluorescence detectors
Buffer selection/large sample loading Optional SV5-4 buffer-select valve, Model EP-1 Econo pump or Econo gradient pump
Sample injection AVR7-3 valve
Multiple sample injection Optional DynaLoop sample loops; 25 ml, 90 ml
General fraction collection BioFrac or Model 2110 fraction collector
Large-volume fraction collection BioFrac fraction collector with optional prep adaptor or AVR9-8 valve
Small-volume fraction collection BioFrac or Model 2110 fraction collector
Buffer blending Optional Maximizer valve system
Column scouting/column switching Optional AVR9-8 valves for =8 columns or additional AVR7-3 valve for 2 columns
Reverse-flow chromatography Additional AVR7-3 valve
Solvent compatibility All commonly used chromatographic solvents
Operating temperature 4–40°C
Dimensions (W x D x H) 35 x 41 x 81 cm (13.8 x 16 x 31.8")
Weight 70 kg (154 lb)
BioLogic DuoFlow F10 Workstation

760-0150
Pkg of 1, medium-pressure chromatography workstation, includes mixer barrel extenders, for use with the F10 pump
