Bio-Plex 100 and 200 Components and Consumables

print
Testing TEsting

The Bio-Plex 200 system integrates xMAP suspension array technology with a reliable workstation, dedicated software, and validation tools.

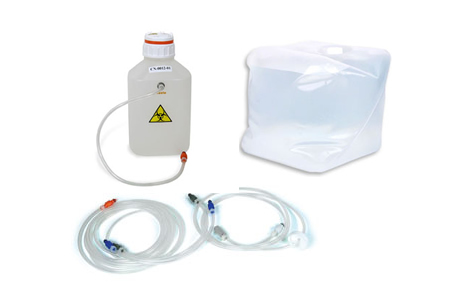

The following components and consumables can be ordered separately for the Bio-Plex 200 system: sample needle, alignment guide, needle adjustment wrench, protective shield for sample needle, air intake filter, syringe seal, syringe seal with cylinder, sheath fluid, sheath fluid bottle, sheath waste bottle, sheath fluid filter with quick connect tubing, sheath cube filter, sheath cube filter with tubing.

Environment conditions
Operating temperature 15–30°C (59–86°F)
Operating humidity 20–80%, noncondensing
Operating altitude Designed to operate at up to 2,000 m (6,600') mean sea level
Compensatory range ±2°C
UL installation category UL Installation Category II, as defined in Annex J of UL 3101–1
Pollution degree UL Pollution Degree 2, as defined in Section 3.7, 3.2, of UL 3101–1
Bio-Plex Array Reader Specifications
Input voltage range 100–240 V, 1.5 A, 47 – 63 Hz
Physical dimensions 43 x 51 x 23 cm (W x D x H)
Weight 23 kg (60 lb)
Lasers
Reporter laser 532 nm, >10 mW, frequency-doubled diode; 30 x 60 µm elliptical beam
Classification laser 635 nm, 10 mW, diode; 30 x 60 µm elliptical beam
Fluidics
Sheath flow rate 90 µl/sec
Cuvette 200 µm square flow channel
Sample injection rates 60 µl/sec
Electronics
Reporter channel detection Photomultiplier tube, A/D resolution 14 bits
Classification and doublet discriminator channel detection Avalanche photodiodes with temperature compensation, A/D resolution 12 bits
Communication interface RS–232
Signal Processing
Measurement resolution 15 bits effective
Processor modes Linear, with logarithmic or linear display option
Dynamic range 70 dB
Bio-Plex Microplate Platform Specifications
Input voltage range 100–240 V, 1.8 A, 47–63 Hz
Physical dimensions 44 x 61 x 8 cm (W x D x H)
Weight 14.4 kg (32 lb)
Communications interface RS–232
Plate capacity One 96–well microtiter plate "≤0.75"
Bio-Plex® Handheld Magnetic Washer

171-020100
Includes magnetic washer and adjustment hex tools for use in manual wash steps for all Bio-Plex magnetic assays

List Price:   $710.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Sheath Fluid

171-000055
20 L, 1x fluid in cube container with pour spout, for use with the Bio-Plex® 200 and Bio-Plex 3D system array readers and high-throughput fluidics (HTF) system

List Price:   $65.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Sheath Fluid Bottle

171-002010
Pkg of 1, 1 L polypropylene bottle with sheath-fluid and air-intake ports and tubing, for use with the Bio-Plex 200 system

List Price:   $385.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Sheath Waste Bottle

171-002012
Pkg of 1, 1 L polypropylene bottle with waste port and tubing, for use with the Bio-Plex 200 system

List Price:   $385.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Sample Needle

171-002020
Pkg of 1, 11.6 cm (4.6"), long stainless steel sampling needle for use with the Bio-Plex 200 system

List Price:   $300.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Alignment Guide with Shipping Pin

171-002024
Pkg of 1, replacement fitting and blue shipping pin for Bio-Plex 200 system; aligns array reader on microplate platform

List Price:   $235.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Needle Adjustment Wrench

171-002026
Pkg of 1, tool for adjusting sample needle on the Bio-Plex 100 system

List Price:   $94.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Protective Shield for Sample Needle

171-002030
Pkg of 1, covering for sample needle on the Bio-Plex 200 system

List Price:   $120.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Air Intake Filter

171-002032
Pkg of 1, replacement maintenance part for the Bio-Plex 200 system

List Price:   $215.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Syringe Seal

171-002033
Pkg of 4, replacement maintenance parts for syringe plunger on the Bio-Plex 200 system

List Price:   $86.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Syringe Seal With Cylinder

171-002034
Pkg of 1, replacement syringe assembly for internal fluidics system on the Bio-Plex 200 system

List Price:   $400.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Sheath Fluid Filter With Quick Connect Tubing

171-002038
Pkg of 1, replacement maintenance part for internal fluidics system on the Bio-Plex 200 system; removes >5 μm diameter particles

List Price:   $250.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Sheath Cube Filter

171-002040
Pkg of 1, replacement maintenance part for use with high-throughput fluidics (HTF) system and Bio-Plex 200 system; removes >10 µm diameter particles

List Price:   $210.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
HTF Tubing

171-002056
Pkg of 1, air tubing HTF to reader, sheath tubing HTF to reader, tubing sheath container to HTF (including 10 µm filter), and waste tubing (reader to waste container)

List Price:   $450.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Communication Cable

171-002001
Pkg of 1, 5 ft DB9 cable, connects Bio-Plex 200 system microplate platform with PC serial port
List Price:   $298.00
Quantity:   Add to Quote

Communication Cable

171-002002
Pkg of 1, 3 ft CAN BUS cable, connects Bio-Plex 200 system array reader with high-throughput fluidics (HTF) system

List Price:   $280.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Communication Cable

171-002003
Pkg of 1, 5 ft USB cable, connects Bio-Plex 200 system array reader with PC USB port

List Price:   $295.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
Needle Guide

171-002023
Pkg of 1, replacement fitting for Bio-Plex 100 system; allows sample needle access to microplates

List Price:   $170.00
Your Price:   Log in
Quantity:   Add to Cart
Add to Hot List   Add to Quote
