CFX Qualification Plate

The CFX qualification plate 96-well format verifies the performance of CFX96™, CFX96 Touch™, CFX96 Touch Deep Well™, and CFX Connect™ real-time PCR detection systems. Using 2-fold discrimination with 99.7% confidence level and single product melt peak criteria (Figure 1), the CFX qualification plate provides reliable performance results for your CFX system. A one-click pass/fail performance result tool in CFX Manager™ software allows you to easily generate, print, and incorporate a report for an instrument qualification protocol (Figure 2).

Fig. 1. CFX qualification plate data for a CFX96 Touch real-time PCR detection system. A, amplification chart displaying 2-fold discrimination with 99.7% confidence level between the two unknown groups; B, melt peak chart displaying a single product melt peak.

Fig. 2. Qualification Plate Check Results window showing a passing result for a CFX96 Touch real-time PCR detection system.

The CFX qualification plate 384-well format verifies the performance of CFX384™ and CFX384 Touch™ real-time PCR detection systems. Using 2-fold discrimination with 99.7% confidence level and single product melt peak criteria (Figure 1), the CFX qualification plate provides reliable performance results for your CFX system. A one-click pass/fail performance result tool in CFX Manager™ software allows you to easily generate, print, and incorporate a report for an instrument qualification protocol (Figure 2).

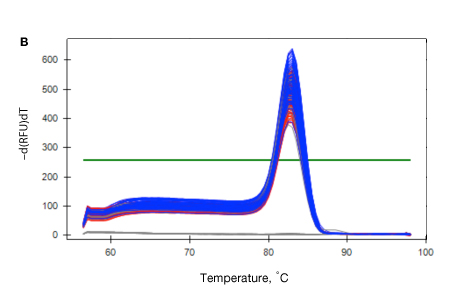

Fig. 1. CFX qualification plate data for a CFX384 real-time PCR detection system. A, amplification chart displaying 2-fold discrimination with 99.7% confidence level between the two unknown groups; B, melt peak chart displaying a single product melt peak.

Fig. 2. Qualification Plate Check Results window showing a passing result for a CFX384 real-time PCR detection system.
